Premium fasteners for thermal insulation systems
Dowels with very solid pins used for fastening expanded / extruded polystyrene sheets and tiles of basalt rockwool.
- Description

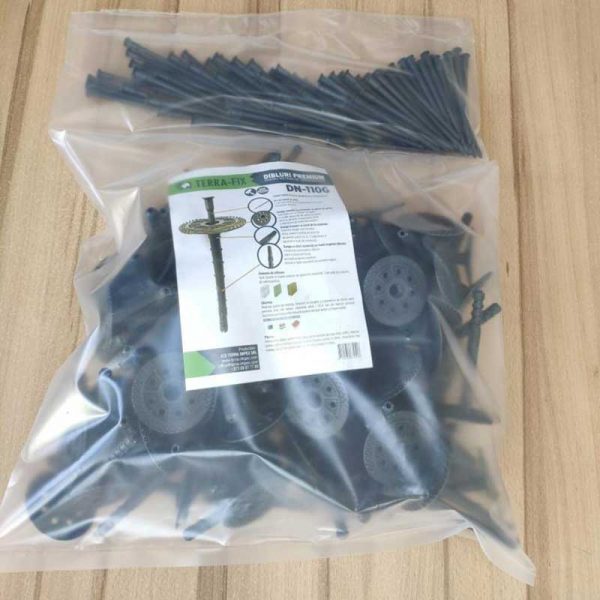

- Packaging
- Pulling force
| Product Code | Product Descripting | Nail | pcs/box | box/pallet | pcs/pallet |

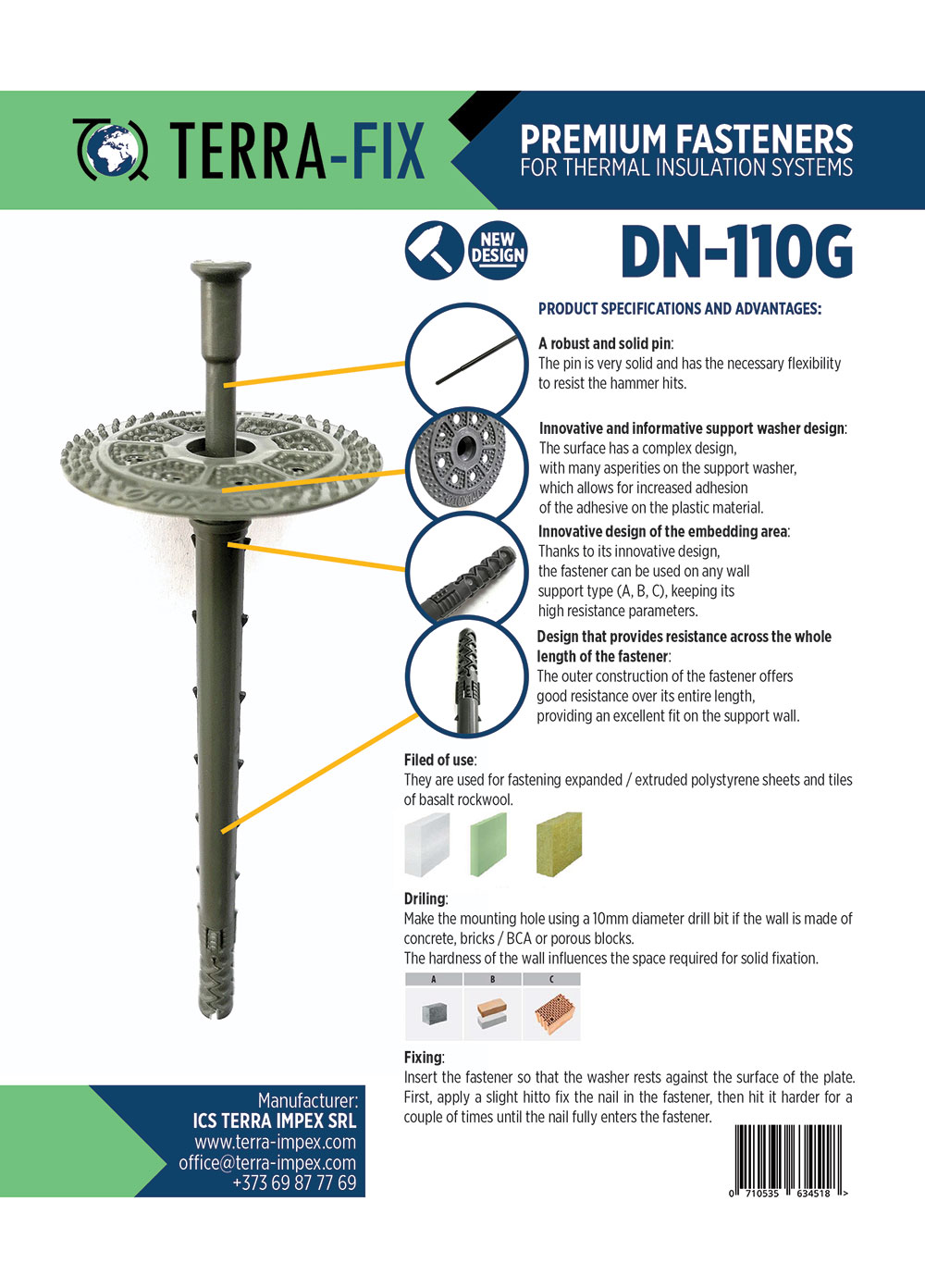

| TerraFix DN-110G | Dowel grey plastic TerraFix 55x110mm | 111mm | 100 | 108 | 10800 |

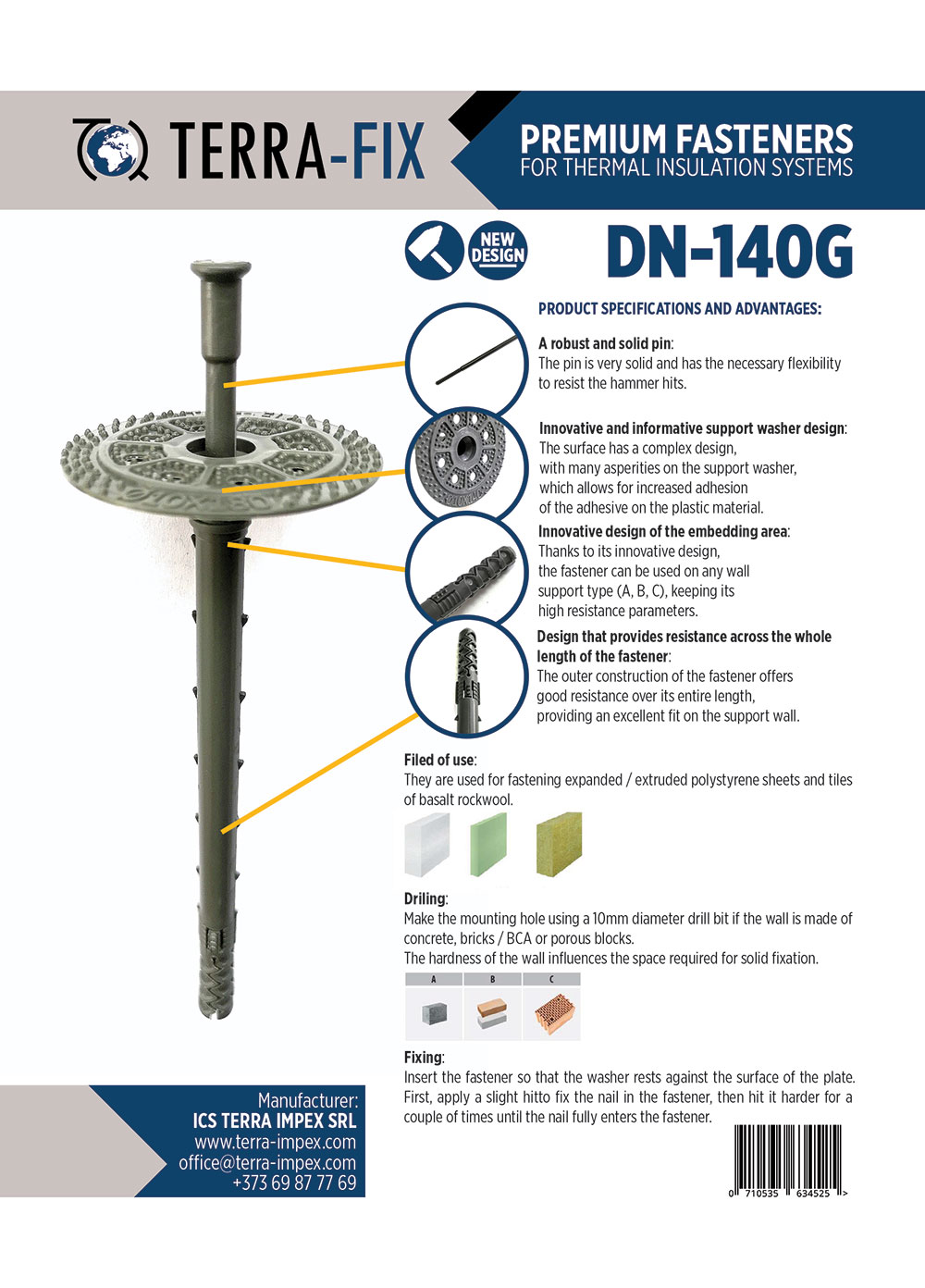

| TerraFix DN-140G | Dowel grey plastic TerraFix 55x140mm | 141mm | 100 | 84 | 8400 |
| TerraFix DN-160G | Dowel grey plastic TerraFix 55x160mm | 161mm | 100 | 84 | 8400 |

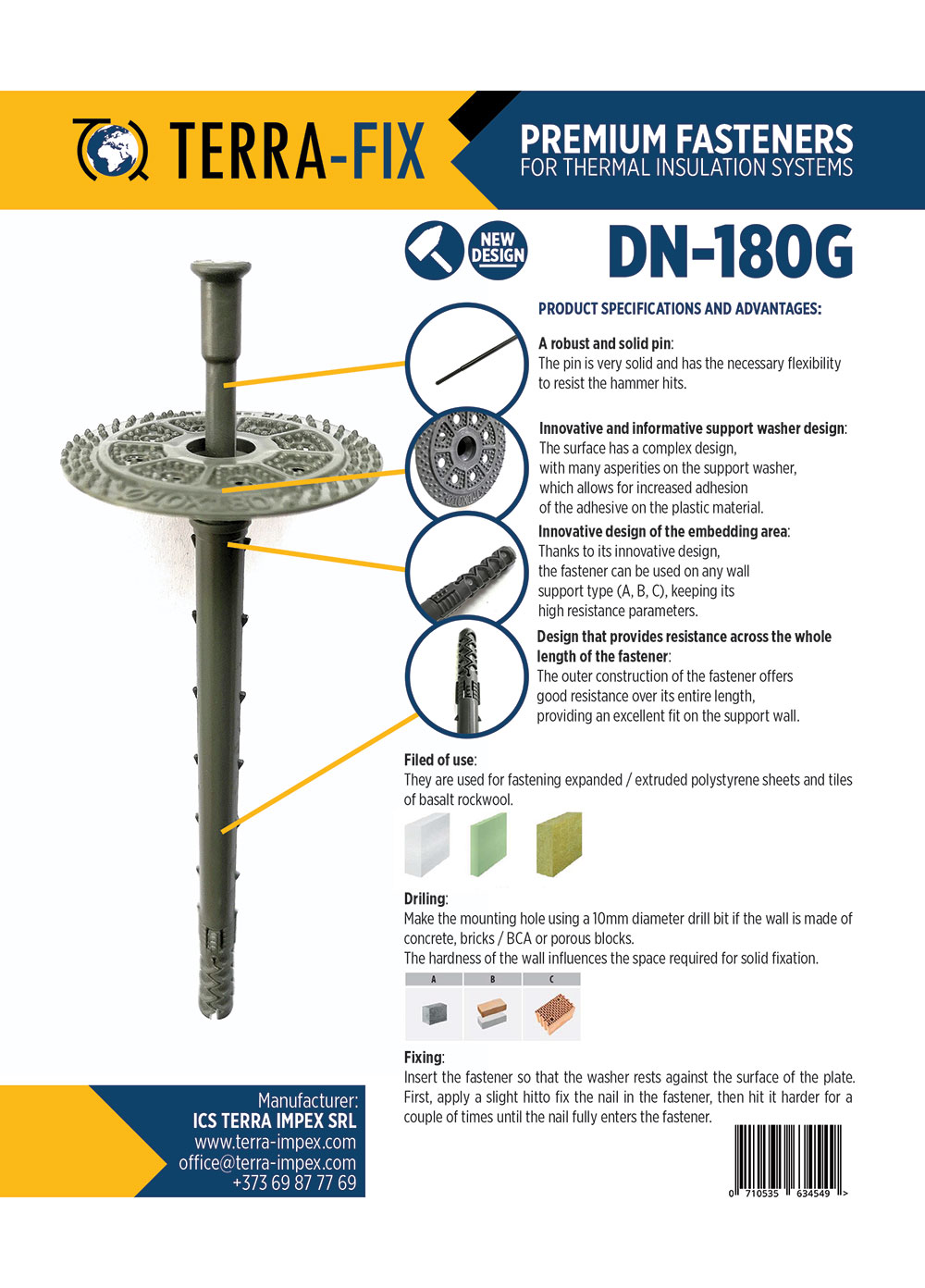

| TerraFix DN-180G | Dowel grey plastic TerraFix 55x180mm | 181mm | 100 | 72 | 7200 |
| Type fasteners | Pulling force, N | ||||
| Substrate | 1 | 2 | 3 | Average | |
| Type 1 DN-110G | brick | 561 | 548 | 588 | 566 |
| concrete | 561 | 660 | 685 | 635 | |
| BCA | 118 | 102 | 129 | 116 | |
| Type 2 DN-140G | brick | 371 | 385 | 472 | 409 |
| concrete | 774 | 658 | 639 | 690 | |
| BCA | 141 | 112 | 114 | 122 | |
| Type 3 DN-160G | brick | 360 | 349 | 420 | 376 |
| concrete | 729 | 807 | 710 | 749 | |
| BCA | 101 | 107 | 87 | 98 | |
| Type 4 DN-180G | brick | 636 | 591 | 582 | 603 |
| concrete | 650 | 658 | 558 | 622 | |
| BCA | 205 | 159 | 258 | 207 | |
